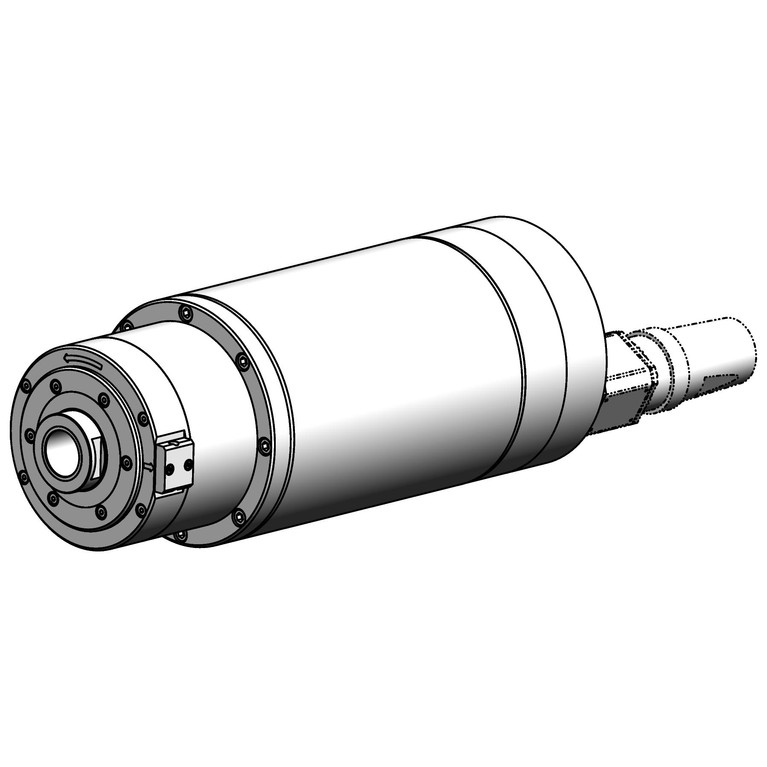

grinding spindle S150PSSO3324018AKKKKX_7345

Individual

Grinding spindles achieve top speeds of up to 80,000 rpm and are therefore ideal for internal cylindrical grinding. SM/SH spindles have a power range up to 30 kW and rated torques up to 24 Nm.

grinding spindle S150PSSO3324018AKKKKX_7345

Technical data

Series
Individual
Appli­cation
grinding spindle
Inter­face
special
Shaft clamp
no
Release unit
none
Rotary feed-through
No
Rotary transducer
No
Maximum speed
33.000
Nominal speed
23.735
Nominal power
18
Nominal torque
7,0
Motor type
asynchronous
Diameter
150,0
Length
388
Bearing lubrication
oil air
Datasheet CAD Download
