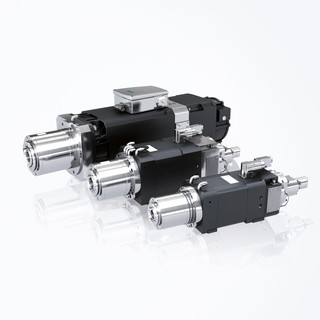

Hybrid Spindle
The hybrid spindle is an impressive development - the combination of the master spindle motor and the spindle functionality results in a high quality milling spindle.
Speeds of up to 24,000 rpm, high rates of precision due to the direct drive, low levels of oscillation and all of the necessary spindle functionalities provide mechanical engineers with the possibility of increasing their efficiency in comparison to machines with connected motor-spindle solutions.
| 1) on request | ||
| Dimension 100 | Dimension 132 | |
| Speed[rpm] up to | 18.000 (20.000)1) | 12.000 |
| Power [kW] up to (S1) | 18,5 | 30 |
| Torque [Nm] up to (S1) | 54 | 191 |
| Interface | SK40 (DIN 69871/72), BT40 / BBT40 (MAS 45°) | SK40 (DIN 69871/72), HSK-A63, BT40 (MAS 45°) |
| Bearings | Grease lubricated precision angular contact ball bearings, head cooling | Grease lubricated precision angular contact ball bearings |
| Motor | Asynchronous motor, water cooled | water- or air cooled |
| Fixation | With flange or fixing strips1) on machine slide | |
| Degree of protection | P64 (labyrinth sealing with air purge)/ IP53 | |
| Options | - Hydraulic release unit with/ without rotary union - Analog sensor for drawbar positioning monitoring - DRIVE-CLiQ | |
